Type 5 elite connect LS

The AquaForte Biopool Series consists of complete Plug & Swim filter systems for Type 4 and Type 5 biopools. The pre-assembled installations combine ecological filtration, UV-C and energy-efficient water treatment to deliver clear, stable and safe swimming water up to approximately 80 m³.

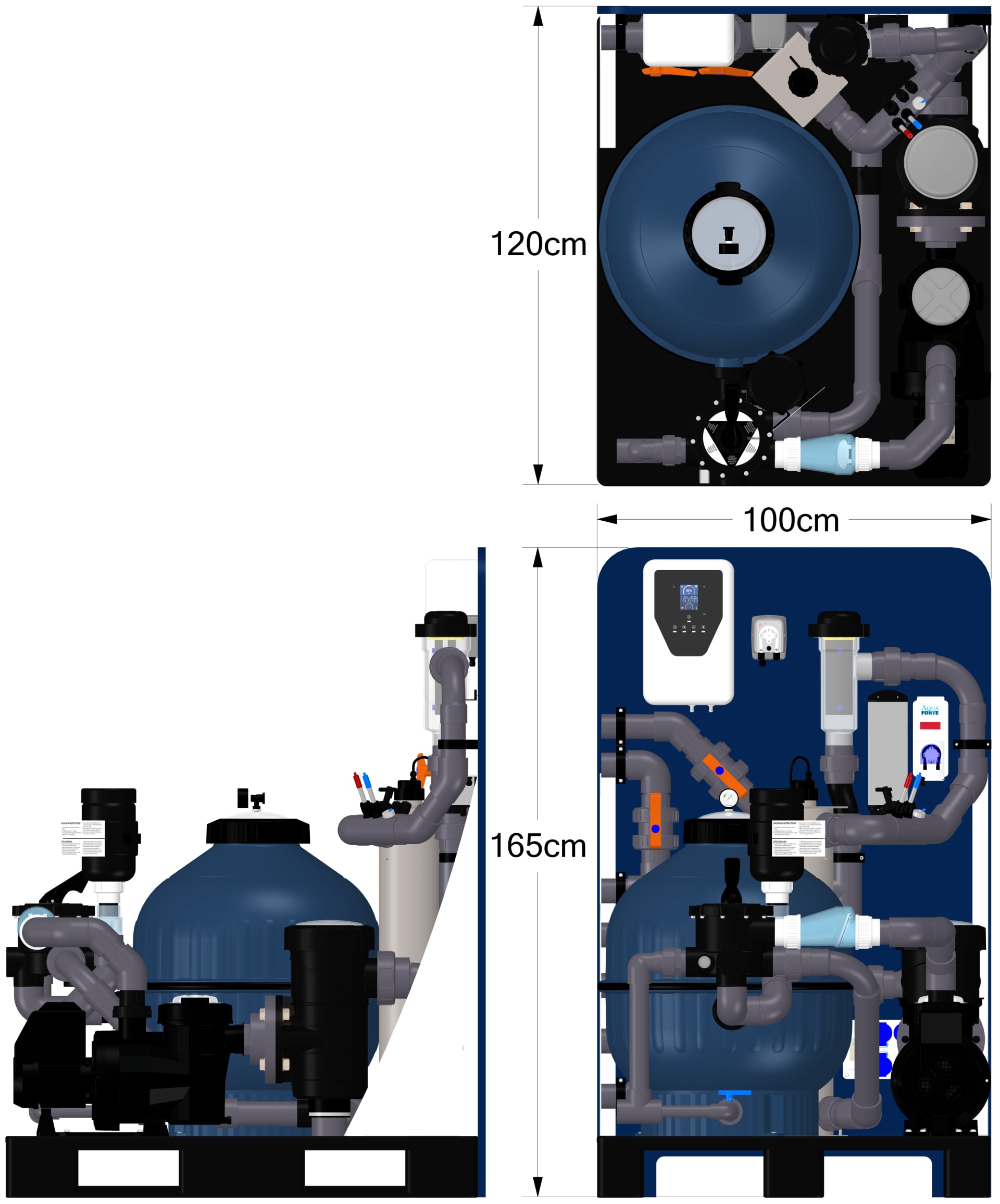

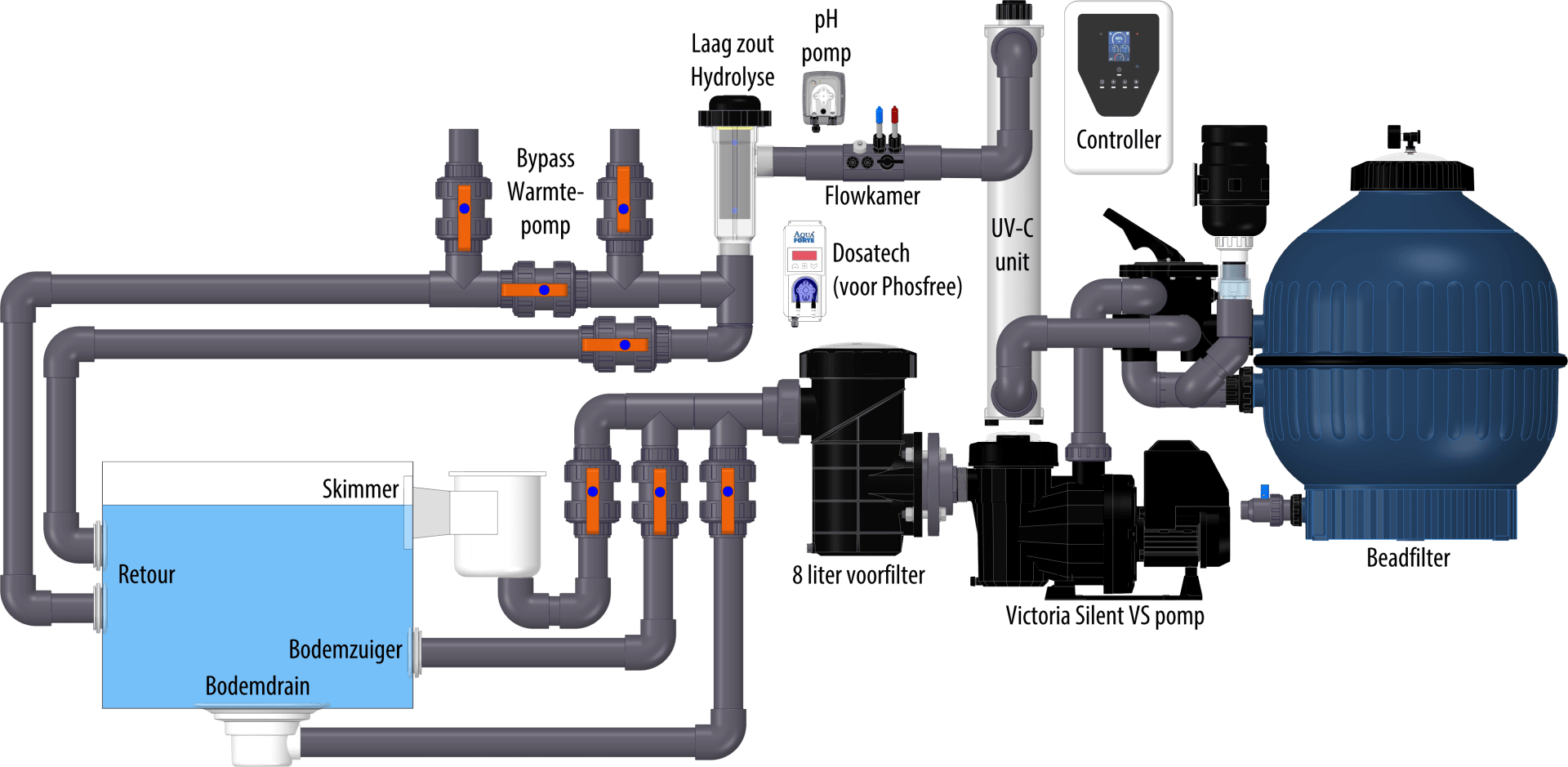

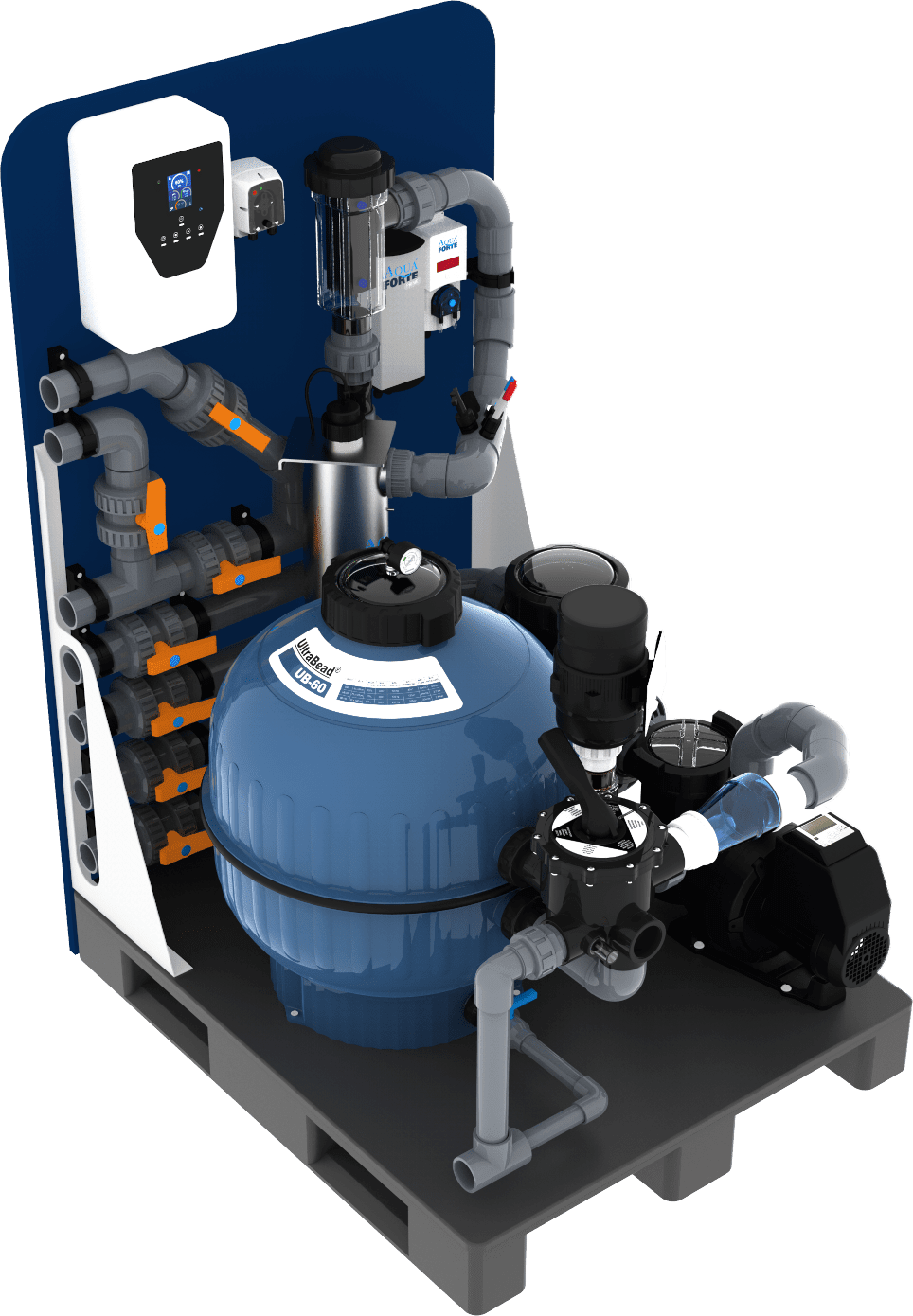

## Complete Plug & Swim Biopool series for clear and stable swimming water The installations within the AquaForte Biopool Series are delivered fully pre-assembled, with all essential filtration and water treatment components integrated into one compact setup. This allows fast installation and keeps the system accessible for operation and maintenance. The systems are mounted on a plastic pallet with an HDPE back panel. This makes the Biopool Series suitable for both new biopool installations and the renovation of existing swimming pools into biopools. Within this series, models such as TC303, TC305, TC307 and TC318 are available, each developed for specific applications within the Type 4 or Type 5 biopool concept. ## Complete Plug & Swim filter system for biopools up to ±80 m³ Each installation within the AquaForte Biopool Series combines efficient filtration, UV-C disinfection and automated water treatment in one compact system. All models are equipped with an AquaForte UltraBead UB-60 bead filter, providing both mechanical and biological filtration down to approximately 10 microns. Thanks to the low pressure loss and air-assisted backwash process, both energy and water consumption are reduced. The filter media does not need replacement, contributing to reliable long-term operation and low maintenance. ## Low-chlorine Type 5 system with Elite Connect hydrolysis The AquaForte Biopool Type 5 Elite Connect LS is a low-chlorine Type 5 biopool system that combines UV-C disinfection with an AstralPool Elite Connect 100 LS hydrolysis system for stable and controlled water quality. The installation is equipped with an energy-efficient InverPro variable-speed pump with real-time flow control. This ensures stable water circulation and efficient operation, even when filter resistance changes. ## Choose between Type 4 and Type 5 Biopool systems Within the AquaForte Biopool Series, you can choose between Type 4 (fully chlorine-free) and Type 5 (low-salt hydrolysis support). Type 4 systems operate fully biologically without chlorine, while Type 5 systems support water stability with low-salt hydrolysis. Want to learn more about the differences between Type 4 and Type 5 biopools? Read the detailed article in our knowledge centre.
