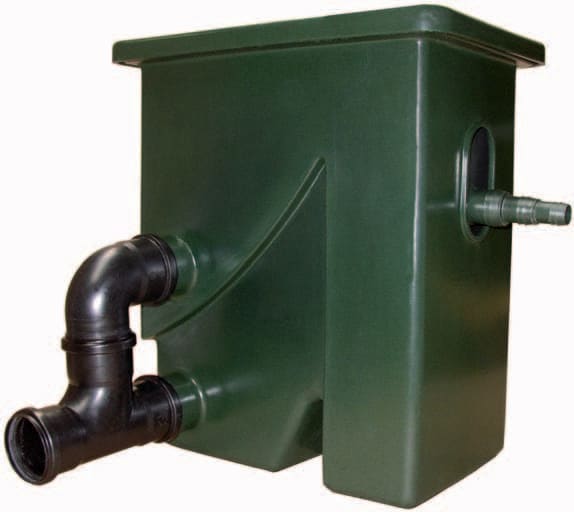

CompactSieve 300 micron green

Compact version of the UltraSieve for use only in a pump fed configuration. The Stainless Steel filter element has a width of 24 cm and a length of 40 cm with 300 micron openings. Maximum flow rate is approximately 15 m³/h. Pump inlet: 25/32/40mm hose tail. Housing: dark-green or blue granite coloured PE. Shipped with cover. Output and overflow: 75mm push fittings.

Compact version of the UltraSieve for use only in a pump fed configuration. The Stainless Steel filter element has a width of 24 cm and a length of 40 cm with 300 micron openings. Maximum flow rate is approximately 15 m³/h. Pump inlet: 25/32/40mm hose tail. Housing: dark-green or blue granite coloured PE. Shipped with cover. Output and overflow: 75mm push fittings. Very easy to use: a dirty water pond pump is connected directly to the CompactSieve input. The water flows through the sieve which removes all particle matter down to a size of 300 micron. The CompactSieve must always be installed above pond level. Now available in dark green and granite blue. Applications: – As a particle remover directly next to the pond or to a waterfall/stream return to pond (A) – As a mechanical particle waste pre-filter before surface mounted biological stages (B) – As a mechanical pre-filter for existing trickle filter systems (C) – The unit can be connected to a pond vacuum cleaner and the returned water from the vacuum cleaner can be fed into the input hose tail via a T-piece or directly. For extra particle removal and saving your precious matured pond water (D) – The unit can be connected to an existing pumped pond skimmer system. The unit must be mounted above pond water level (E)
